LCFPerformance 72" × 36" Rotisserie Fixture Table Plans — DIGITAL FILE SET ONLY

---

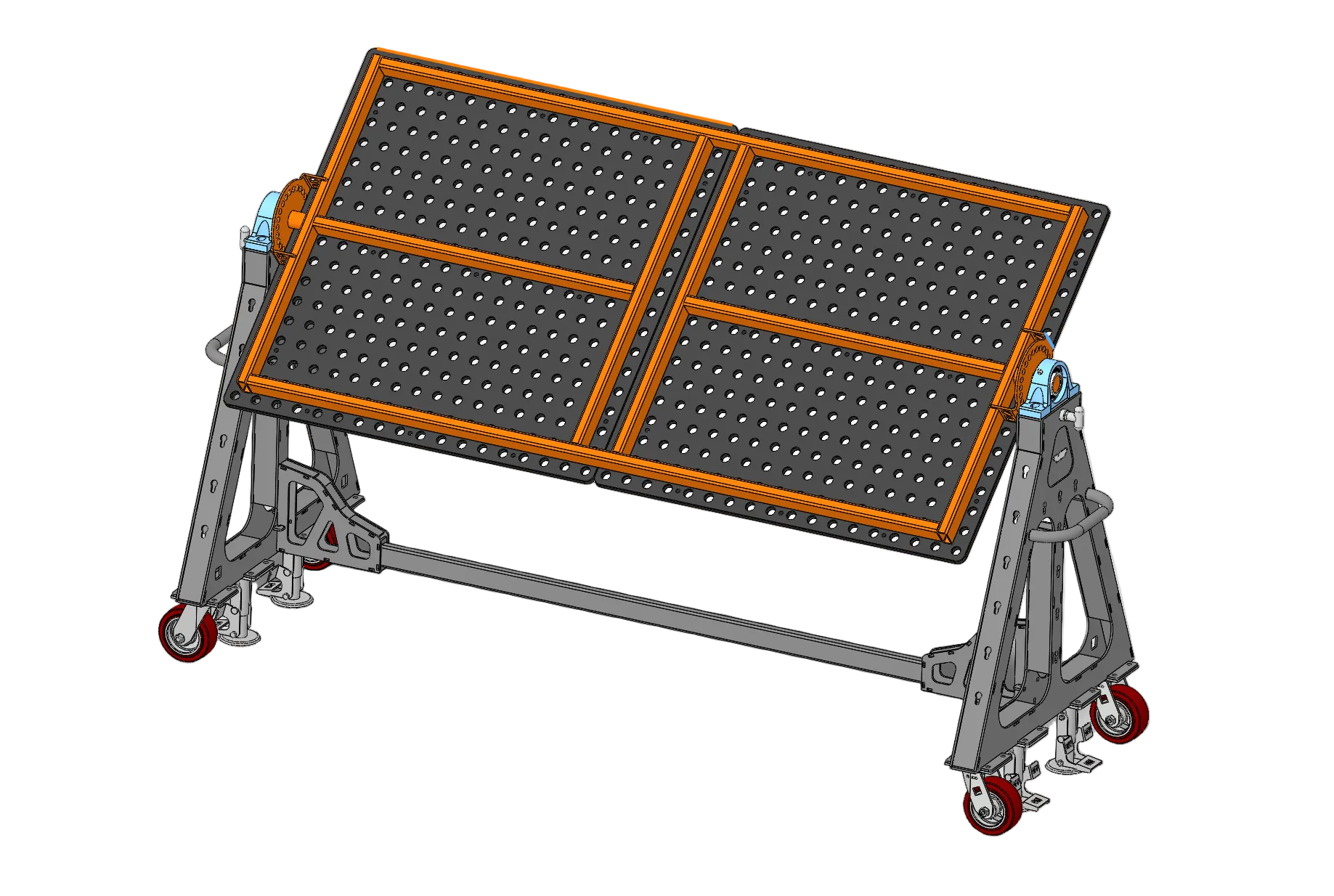

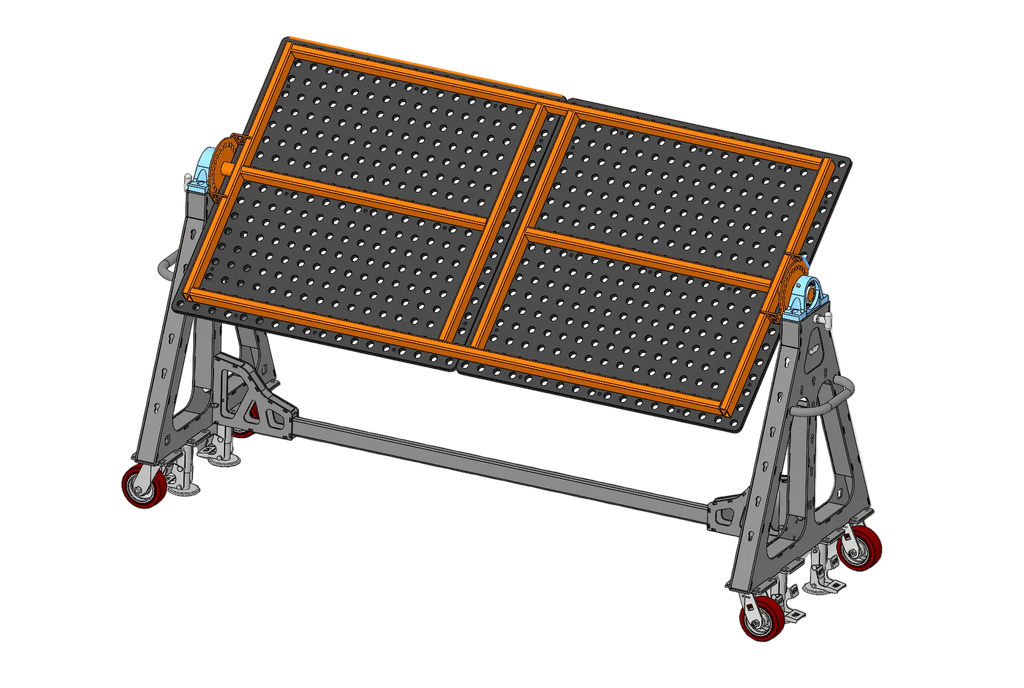

Build your own 72" × 36" rotisserie fixture table with a complete digital fabrication package based on the table I designed and built.

This package includes the files, drawings, reference models, sourcing information, and real-world fit-up notes needed to take the project from CAD to finished table without having to reverse-engineer the design yourself.

Included with purchase:

• Complete laser-cut DXF file set
• Separate plasma-cut DXF file set
• Individual STEP files for fabricated components
• Complete and subassembly STEP models
• Full fabrication drawing set with BOM, part numbers, quantities, cut lengths, material specs, bend details, and assembly dimensions

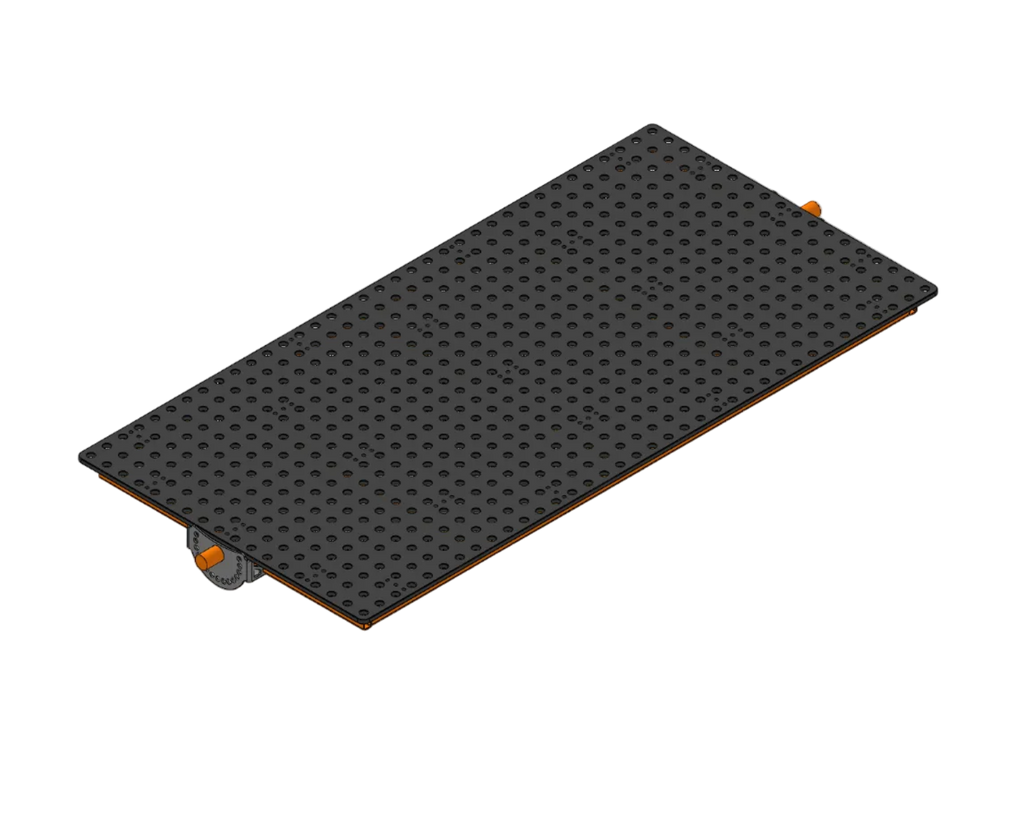

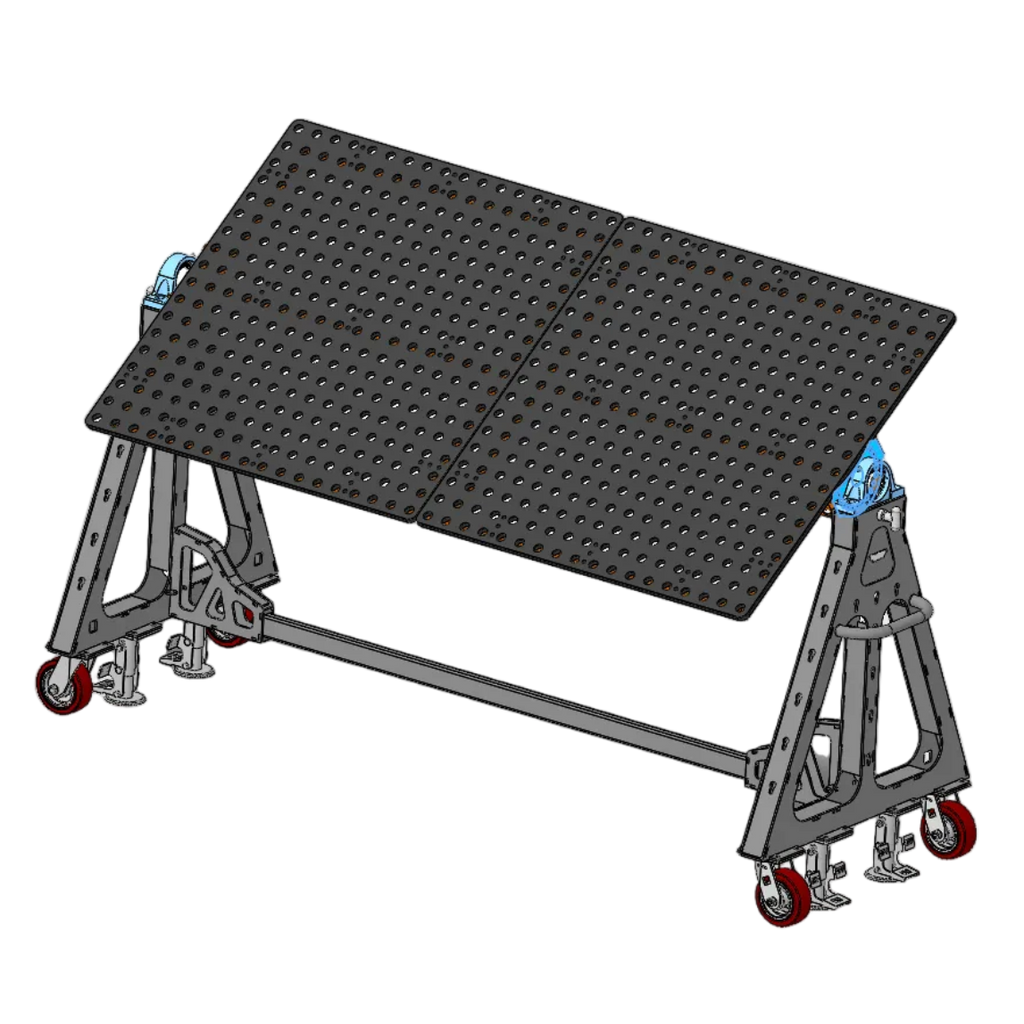

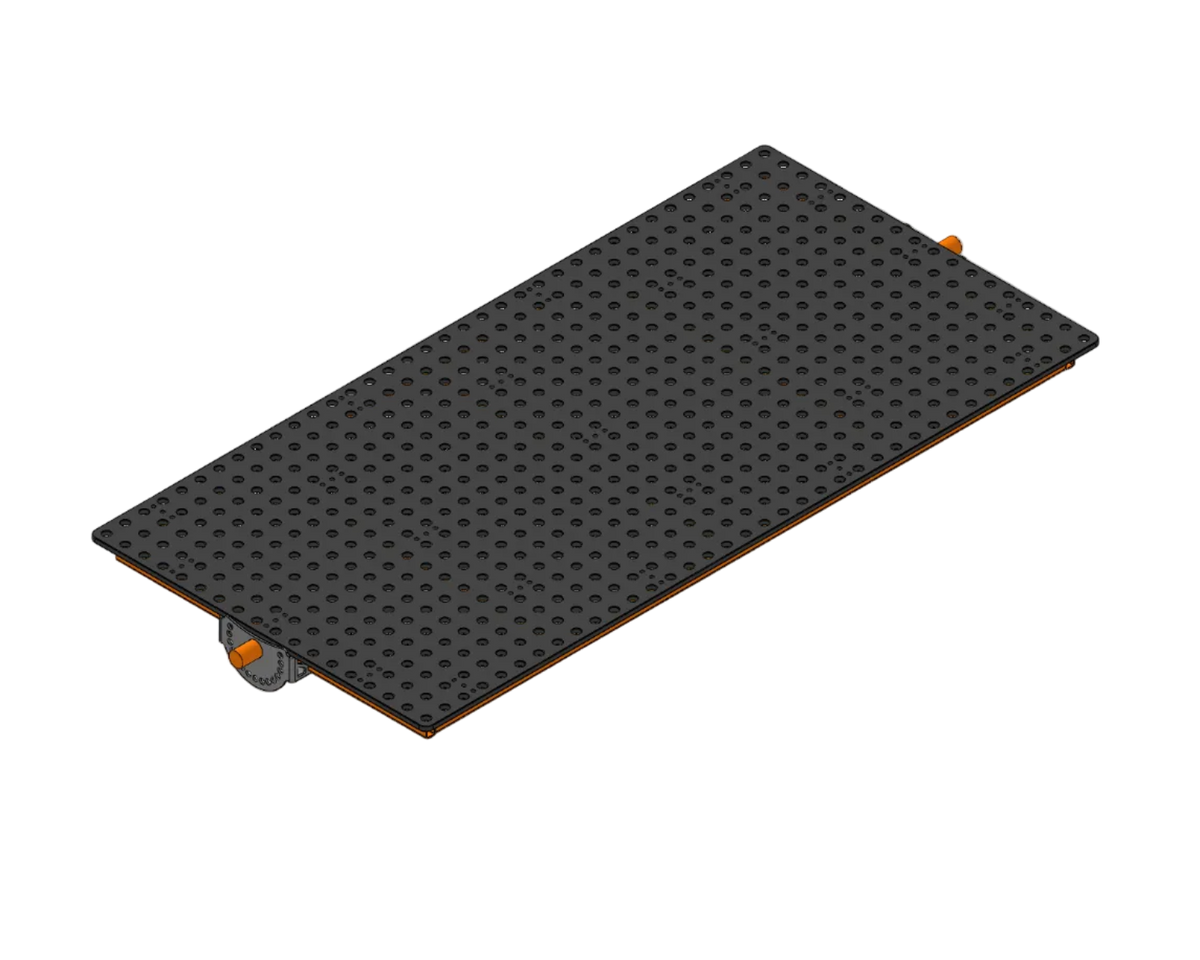

• Files for both two 36" × 36" tops and one 72" × 36" top

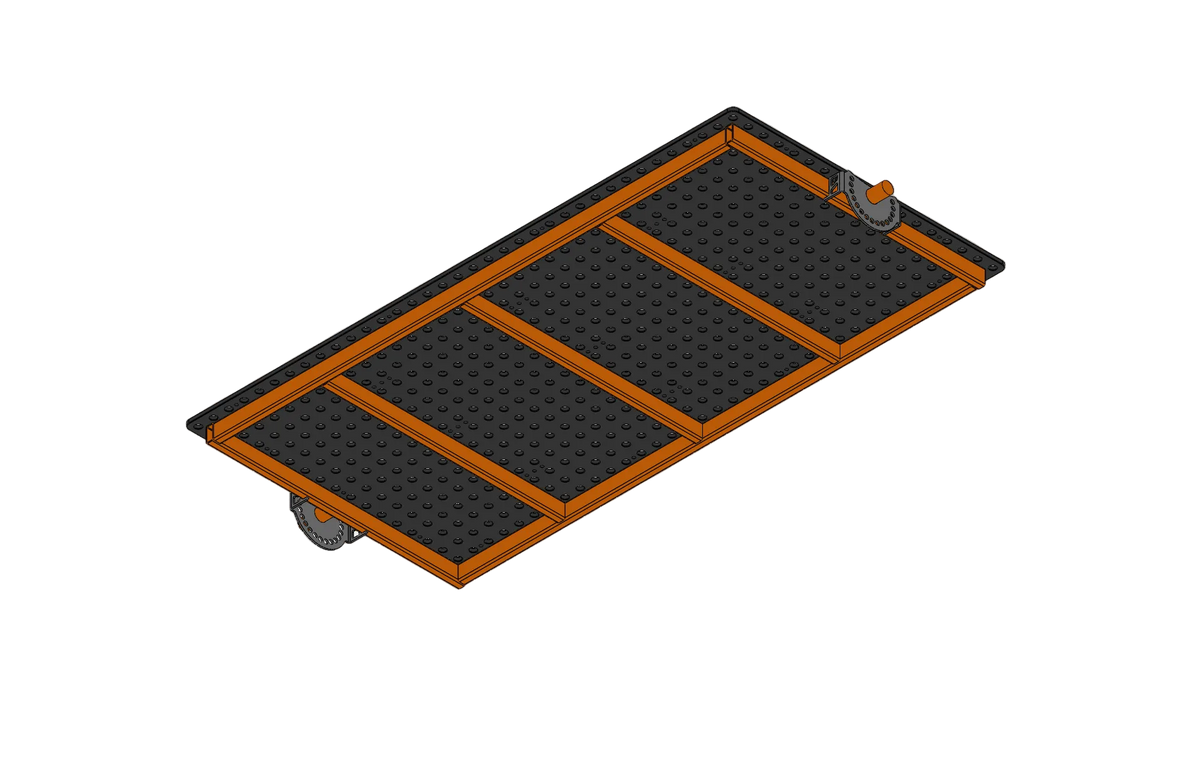

• Matching top-frame layouts for both tabletop configurations
• Laser-cut tabletop DXFs for customers who want to source their own top instead of purchasing a machined fixture-table slab
• Reference models for purchased components used throughout the design
• Build notes covering important fit-up details, hub and pivot alignment, bend-radius considerations, locking-pin setup, and other lessons learned during the original build
• Component sourcing links and cost-saving notes
• Optional bottom shelf fabrication files

The design can be built around Fireball Tool tabletop slabs or used with the supplied tabletop DXFs to have your own plates laser cut.

This is intended to be a complete fabrication package rather than just a set of cut files, with the goal of making the build as straightforward and repeatable as possible.
